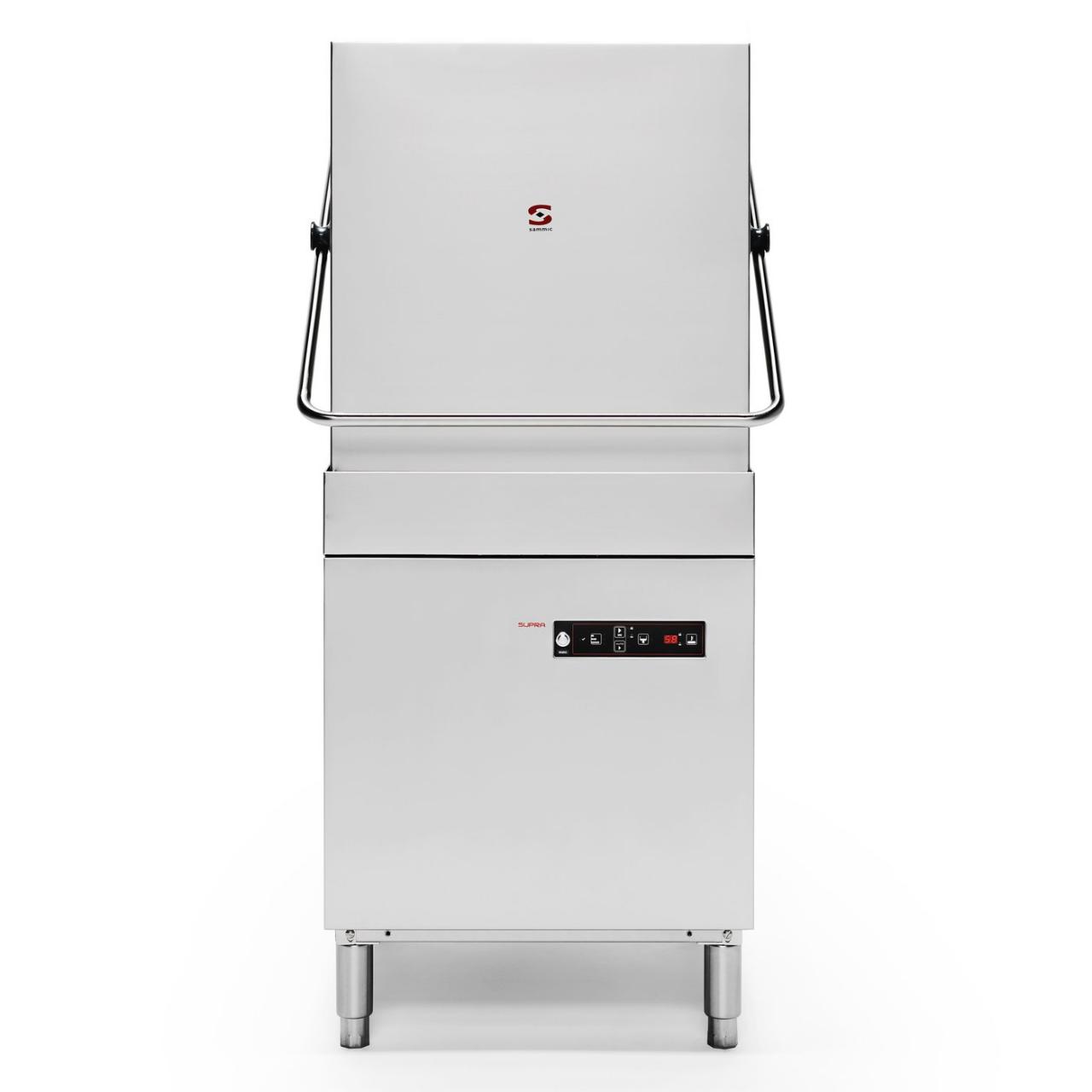

Sammic SUPRA S-100 Commercial Passthrough Dishwasher - 60 Baskets/Hour - Gravity Waste - 1302302

Sammic S-100 SUPRA Range Passthrough Dishwasher - Commercial pass-through dishwasher with a useful height of up to 400mm & 3 wash cycles with thermal cycle delay option included.

Need the whole package for your warewashing station? Then look no further and view the vast range of warewashing equipment we have to offer including a variety of different taps, dishwasher tabling options and spray arms:




Features:
• Hood style dishwasher can be used for straight inline & corner situations, used to wash trays, cups, plates, glasses and cutlery.
• Double skinned hood to hold temperature, saving energy.
• Double system of rotating wash & rinse arms situated on the top & bottom on machine.
• Auto cycle start.
• Moisture resistant electronic control panel with wash & rinse temperature display.
• Manufactured from catering grade AISI 304 2B stainless steel & incorporating top quality components.
• The inside of the machine features rounded corners, to avoiding the build up of dirt reducing cleaning time.
• Removable stainless steel rack holders ensure even distribution of wash water.
• Precision positioned water jets guarantee optimum washing result for even the most stubbornly stained ware.
• Easy to assemble, boltless rinse spray arms.
• A double filter system provides effective wash pump protection.
• Magnetic hood micro-switch.
• Adjustable feet to help level the machine on uneven surfaces.
• Tank & boiler temperature display.
• Includes stainless steel top-of-tank filter set.
• Wash tank & rinse boiler temperature adjustment & a thermal cycle delay option.
• Features adjustable feet for stability on any surface.
• Variable detergent doser & rinse aid doser included.
• 1 open basket, 1 mixed basket, 1 cutlery basket included.

Specifications:
• Basket dimensions: 500 x 500mm.
• Maximum glass height: 400mm.
• Cycles: 3.
• Cycle duration: 60“/120“/180“.
• Production baskets/hour: 60/30/20.
• Boiler capacity: 10ltr.
• Wash tank capacity: 40ltr.
• Water consumption/cycle: 3.5ltr.
• Pump: 1500W/2Hp.
• Tank: 3000W.
• Boiler: 9000W.
• Total loading: 10500W.
• Weight: 115kg.

2 YEAR PARTS & LABOUR WARRANTY

Optional Equipment:
• Steam condensing unit with heat recovery system - Thanks to Sammic's innovative HRS system, the machine aspires the steam from hot water inside the tank & uses the energy to heat the incoming water (model V 130256, 1302359, 1302362).
• Drain pump (model B 1302345, 1302359).
• booster pump .
• Constant rinse (model C 1302349, 1302362).

INSTALLATION NEEDS TO BE WITHIN 1 METRE OF SUITABLE EXISTING SERVICES.
PLEASE NOTE: This machine IS NOT fitted with a BREAK TANK. An external breaktank is required for category 5 protection.
This is a gravity waste unit.
Do I need drain pump or gravity waste?
Do I need a water softener for my Glasswasher?
If you find this product cheaper elsewhere, let us know & we will beat it!!

New

Dimensions:
W640 x D756 x H1920 / 1468mm.

Power Requirements:
230V/50Hz/1~. (Standard)

Total Loading: 8380W.

400V/50Hz/3ps is available on request

Special Requirements:
Requires hard-wiring. To be installed by a qualified technician.
Please refer to manufacturers specification
