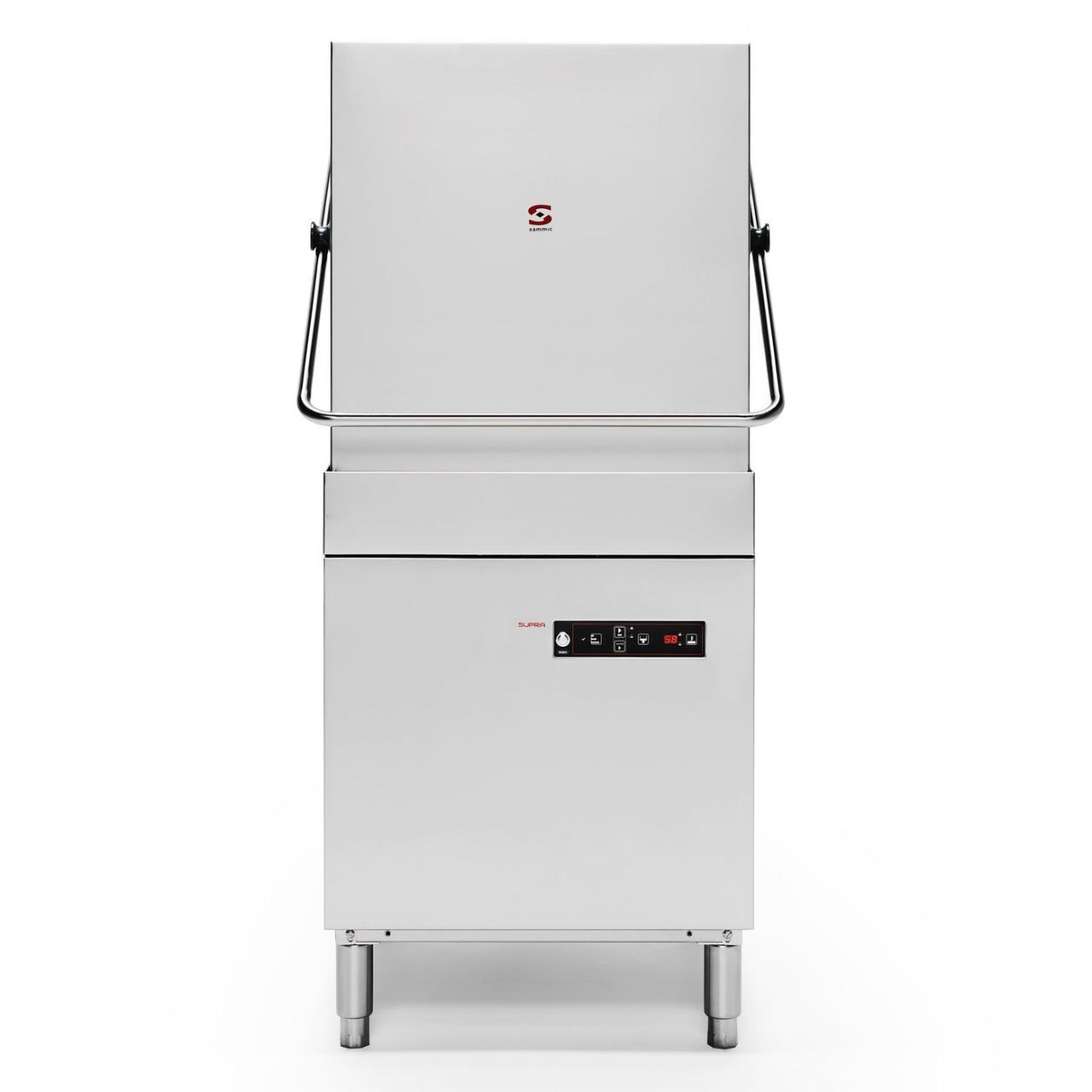

Sammic SUPRA S-100CV Commercial Passthrough Dishwasher - With Constant Rinse Temperature System, Drain Pump & Steam Condenser Discontinued

Sammic S-100CV SUPRA Passthrough Dishwasher with Constant Rinse Temperature System, Drain Pump and Steam Condenser - Commercial pass-through dishwasher with a useful height of up to 400mm & 3 wash cycles with thermal cycle delay option included. Steam condensing unit with heat recovery system, the machine aspires the steam from hot water inside the tank & uses the energy to heat the incoming water.

Need the whole package for your warewashing station? Then look no further and view the vast range of warewashing equipment we have to offer including a variety of different taps, dishwasher tabling options and spray arms:




Features:
• Constant rinse temperature.
• Hood style dishwasher can be used for straight inline & corner situations, used to wash trays, cups, plates, glasses and cutlery.
• Double skinned hood to hold temperature, saving energy.
• Double system of rotating wash & rinse arms situated on the top & bottom on machine.
• Auto cycle start.
• Moisture resistant electronic control panel with wash & rinse temperature display.
• Manufactured from catering grade AISI 304 2B stainless steel & incorporating top quality components.
• The inside of the machine features rounded corners, to avoiding the build up of dirt reducing cleaning time.
• Removable stainless steel rack holders ensure even distribution of wash water.
• Precision positioned water jets guarantee optimum washing result for even the most stubbornly stained ware.
• Easy to assemble, boltless rinse spray arms.
• A double filter system provides effective wash pump protection.
• Magnetic hood micro-switch.
• Adjustable feet to help level the machine on uneven surfaces.
• Tank & boiler temperature display.
• Includes stainless steel top-of-tank filter set.
• Wash tank & rinse boiler temperature adjustment & a thermal cycle delay option.
• Features adjustable feet for stability on any surface.
• Variable detergent doser & rinse aid doser included.
• 1 open basket, 1 mixed basket, 1 cutlery basket included.

Specifications:
• Basket dimensions: 500 x 500mm.
• Maximum glass height: 400mm.
• Cycles: 3.
• Cycle duration: 60“/120“/180“.
• Production baskets/hour: 60/30/20.
• Boiler capacity: 10ltr.
• Wash tank capacity: 40ltr.
• Water consumption/cycle: 3.5ltr.
• Pump: 880W/1.2Hp.
• Tank: 2500W.
• Boiler: 7500W.
• Total loading: 8380W.
• Wash temperature: 65°C.
• Rinse temperature: 90°C.
• Net weight: 115Kg.
• Noise level (1m.): <70dB(A)+.

2 YEAR PARTS & LABOUR WARRANTY

INSTALLATION IS WITHIN 1M OF SUITABLE EXISTING SERVICES.
This is a drain pump waste unit.
Do I need drain pump or gravity waste?
Do I need a water softener for my Glasswasher?
If you find this product cheaper elsewhere, let us know & we will beat it!!

New

Dimensions:
W640 x D756 x H1920 / 1468mm.

Power Requirements:
230V/50Hz/1~. (Standard)

Total Loading: 8380W.

400V/50Hz/3ps is available on request

Special Requirements:
Requires hard-wiring. To be installed by a qualified technician.
Please refer to manufacturers specification
