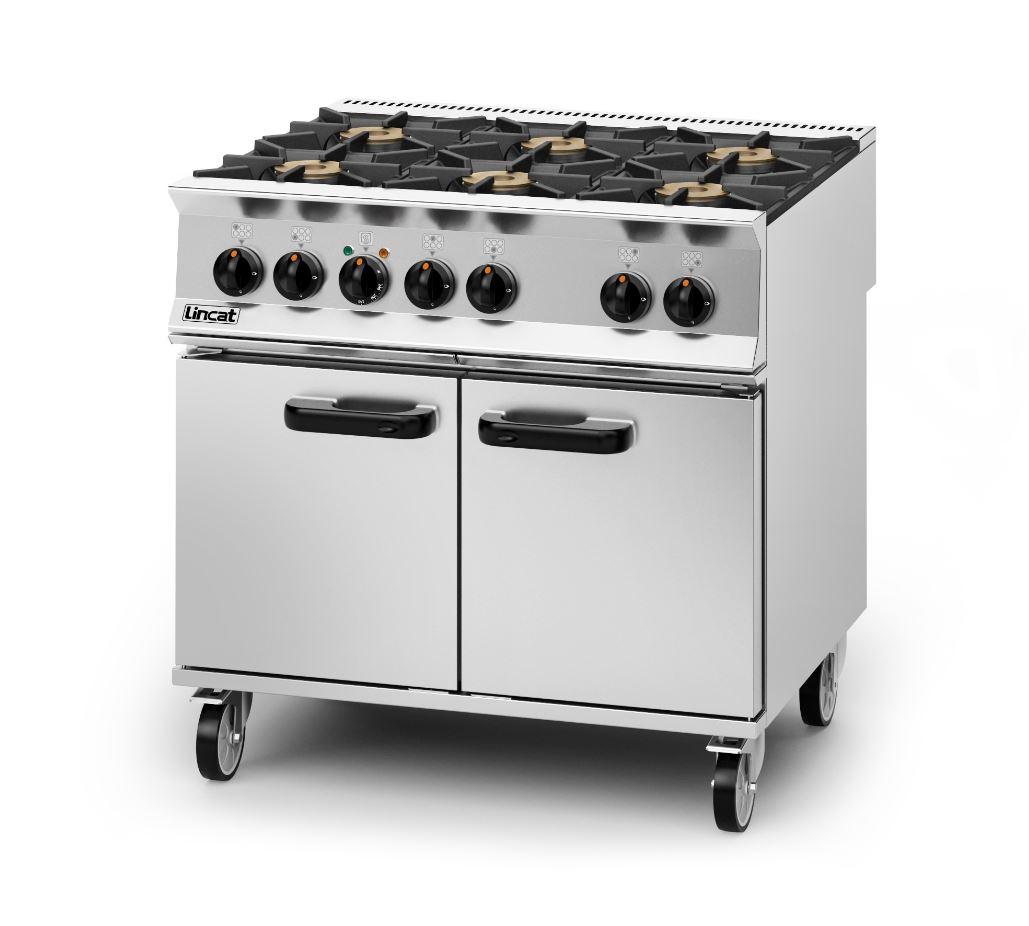

Lincat Opus 800 OD8007 6 Burner Commercial Dual Fuel Range

The Opus 800 series is an extensive range of heavy duty prime cooking equipment, including ovens, fryers, griddles, grills and bratt pans, designed, developed and manufactured by Lincat. Built on the success of Lincats Opus 700 series, Opus 800 is larger, heavier, more durable and more powerful too.
Opus 800 products can be configured in a greater number of ways to meet the needs of the busiest commercial kitchen. With a stylish look, the Opus 800 series is designed and engineered to deliver enhanced performance, energy efficiency and serviceability.

• 7.5kW dual concentric burners for focused heat distribution from a fast boil to a low simmer
• Individual heavy-duty single cast iron supports, built to withstand the rigours of the busiest kitchen
• Flame failure protection
• Low flue to allow use of the complete hob top
• Drip tray
• 6kW oven
• Precise thermostatic control from 130°C to 265°C
• Twin fan assisted oven for uniform heat and consistent cooking results
• Large capacity oven 6 x GN1/1
• 3 shelves and 5 shelf positions maximize oven space
• Removable oven base for easy cleaning
• Double insulated doors, side and back panels for safe operation, efficiency and economy

2 Years Parts & Labour Warranty

New

Dimensions:
External dimensions: W900 x D800 x H900mm
Internal dimensions: W770 x D530 x H419mm

• Product downloads available
• Requires hard-wiring - Flex may need to be purchased separate
• Standard 3 Phase Supply

Power Requirements:
Oven rating: 6kw
Total electrical power rating: 6kw

Electrical supply: Single Phase 1N∼+E 230V 50-60Hz Current
Rating (Amps) 26.4

Electrical supply: Three Phase 3N∼+E 400V 50-60Hz Current
Rating (Amps)
L1 = 9.0
L2 = 8.7
L3 = 8.7


Heat input per hob burner (kW) 7.5 natural, 6.7 propane
Total heat input at full rate (kW) 45 natural, 40.2 propane
Total heat input at full rate (Btu per hour) 153,546 natural, 137,168 propane

Gas consumption at full rate Natural (m3 h-1) 4.29
Gas consumption at full rate Propane (kg h-1) 2.87

Gas pressure (mbar) 20 natural, 37 propane

Special Requirements:
3/4 inch gas hose needed.
Requires hard-wiring by a qualified electrician.
Please refer to manufacturers specification

Downloads available for this product

• Opus 800 OD8007_N Specification Sheet
• Opus 800 OD8007 Manual

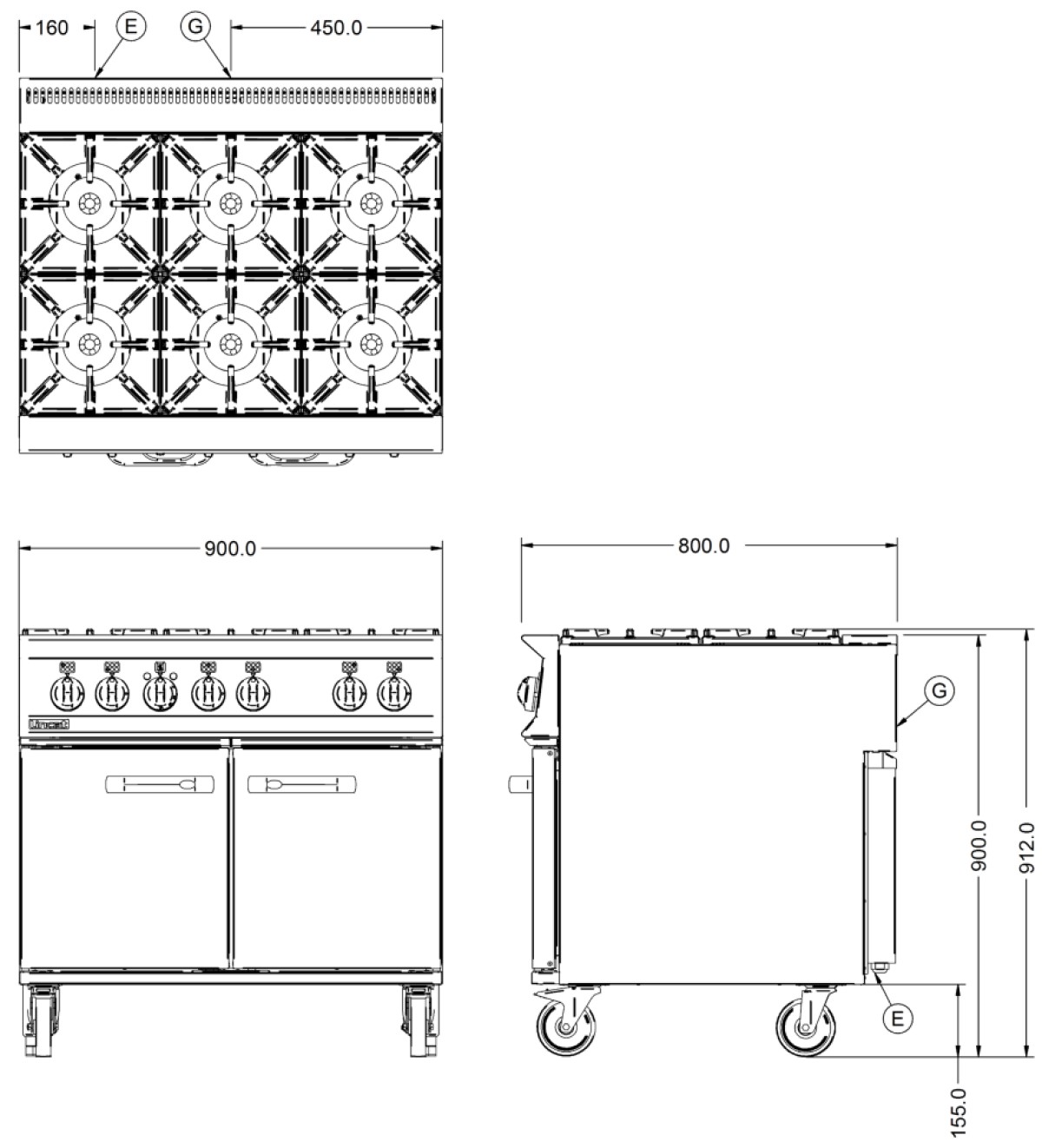

• Technical Drawing
• Opus 800 OD8007_P Specification Sheet
