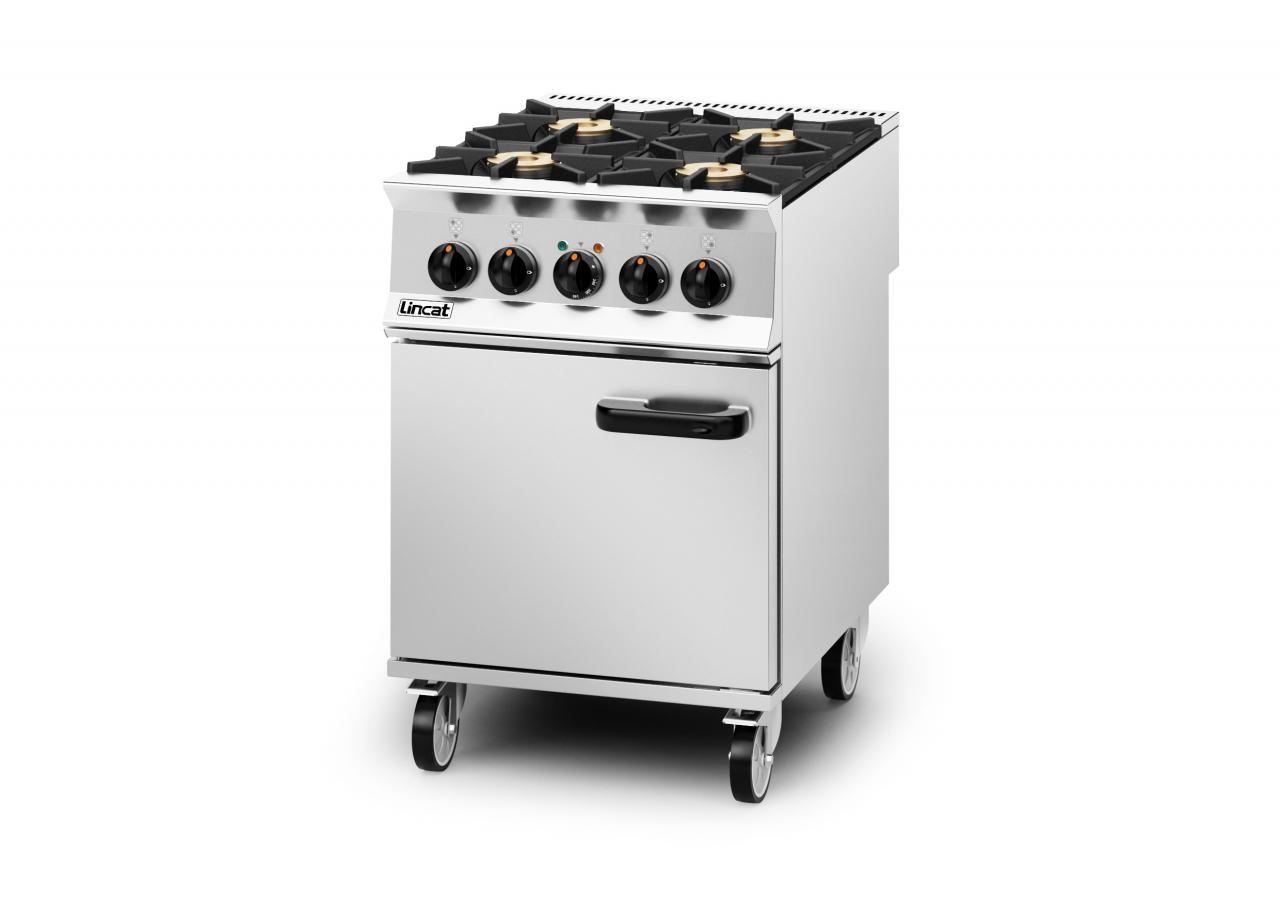

Lincat Opus 800 OD8006 4 Burner Dual Fuel Range

The Opus 800 series is an extensive range of heavy duty prime cooking equipment, including ovens, fryers, griddles, grills and bratt pans, designed, developed and manufactured by Lincat. Built on the success of Lincats Opus 700 series, Opus 800 is larger, heavier, more durable and more powerful too.
Opus 800 products can be configured in a greater number of ways to meet the needs of the busiest commercial kitchen. With a stylish look, the Opus 800 series is designed and engineered to deliver enhanced performance, energy efficiency and serviceability.

• Available in Single Phase or Three Phase
• 7.5kW dual concentric burners for focused heat distribution from a fast boil to a low simmer
• Individual heavy-duty single cast iron supports, built to withstand the rigours of the busiest kitchen
• Flame failure protection
• Low flue to allow use of the complete hob top
• Drip tray
• 4kW oven
• Precise thermostatic control from 130°C to 265°C
• Fan assisted oven for uniform heat and consistent cooking results
• Large capacity oven 3 x GN1/1
• 3 shelves and 5 shelf positions maximize oven space
• Removable oven base for easy cleaning
• Double insulated doors, side and back panels for safe operation, efficiency and economy
• Weight: Net/Packed: 119/131kg

2 Years Parts & Labour Warranty

New

Dimensions:
External dimensions: W600 x D800 x H910mm
Internal dimensions: W528 x D565 x H420mm

• Requires hard-wiring - Flex may need to be purchased separate
• Standard 3 Phase Supply

Power Requirements:
Rating per hob burner: 6.7kw
Oven rating: 4kw

Electrical supply: Single Phase 1N∼+E 230V 50-60Hz Current
Rating (Amps) 17.8

Electrical supply: Three Phase 3N∼+E 400V 50-60Hz Current
Rating (Amps)
L1 = 8.8
L2 = 8.7


Heat input per hob burner: (kW)
7.5 natural,
6.7 propane

Oven rating (kW) 4.0

Total heat input at full rate: (kW)
30 natural
26.8 propane

Total heat input at full rate: (Btu per hour)
102,364 natural
91,445 propane

Gas consumption at full rate:
Natural (m3 h-1) 2.86
Propane (kg h-1) 1.92

Gas pressure:
20 natural
37 propane

Special Requirements:
Requires hard wiring by a qualified electrician.
Please refer to manufacturers specification

Downloads available for this product

• Lincat Opus 800 OD8006_N Specification Sheet
• Lincat Opus 800 OD8006 User Manual

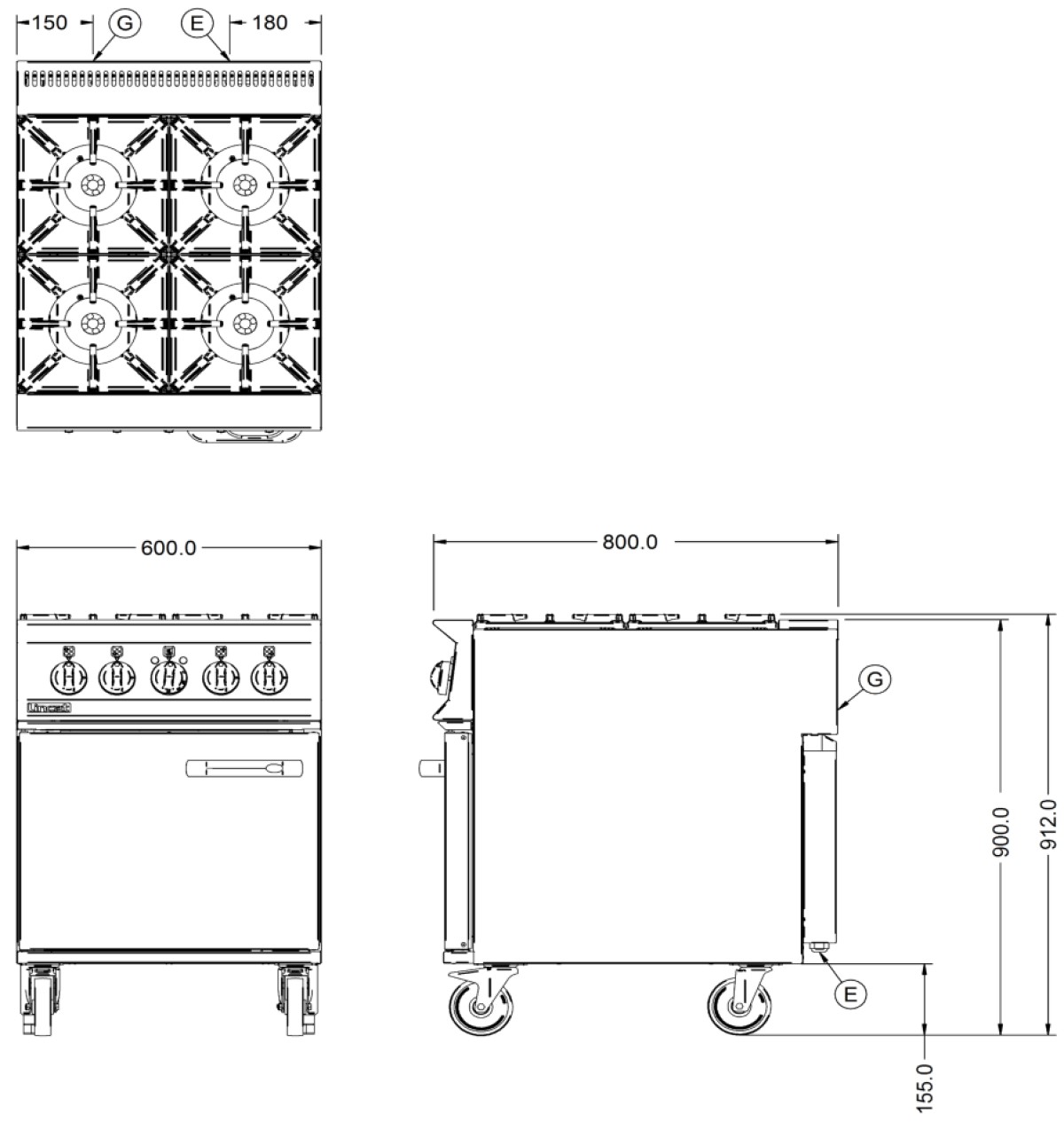

• Technical Drawing
• Lincat Opus 800 OD8006_P Specification Sheet
