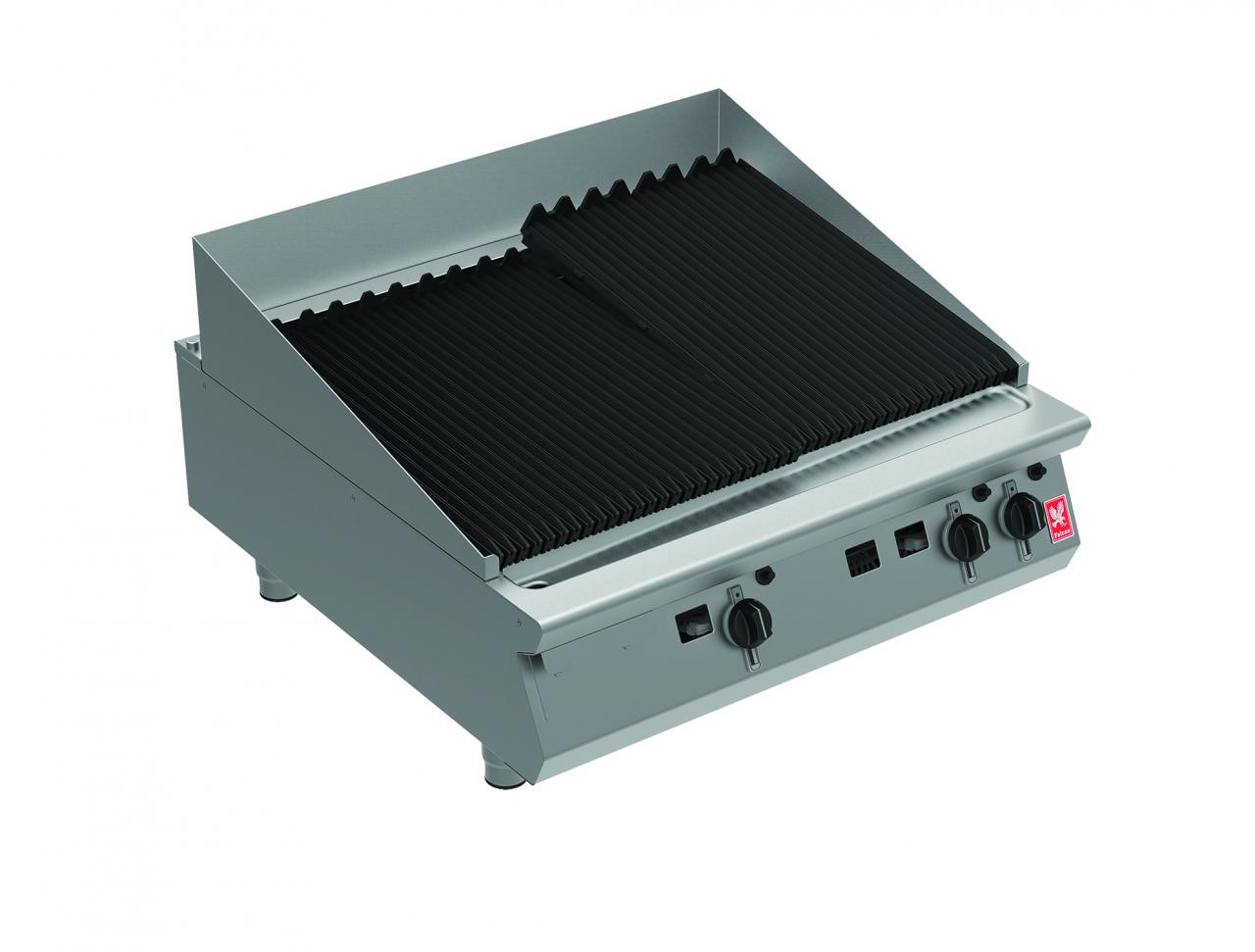

Falcon F900 G9490 Gas Chargrill

The G9490 chargrill has 9 heavy duty, double-sided cast iron brander bars, 4 cast iron radiants and 3 cast iron burners. The radiants, deliver controllable heat across the extended cooking area and variable burner control to help reduce energy consumption. The extensive cooking surface allows the chef maximum versatility and output with the cooler rest area allows enables food to stay warm. The advanced design ensures even cooking across the full width grilling surface, enabling the user to create high quality succulent food every time.

All components can be removed for cleaning and maintenance. The hob is constructed from 2mm 304 grade stainless steel. This unit can be mounted on a fixed or mobile stand with further options for a front hob rail.

Features:
• 3 x 8.4kW cast iron burner with protective radiants.
• Extended cooking area.
• Pressed grease collection tray.
• Removable stainless steel surround.
• Cast iron, reversible brander bars.
• Large capacity grease collection container.
• Cast iron burners with variable control/turndown position.
• Supplied upon stainless steel adjustable feet with options for a fixed or mobile stand available.
• Full width collection debris tray.
• 2mm Thick 304 grade stainless steel hob.
• Laser cut hob allows edge to edge joining of units.
• Stainless steel external panels with Scotch Brite finish.
• For use with natural, propane and butane gas, Conversion kit supplied with each unit.
• Dynamic link system compatible.

Specifications:
• Total rating (kW - Nett) 25.2 27 27
• Total rating (btu/hr - gross) 85,982 92,124 92,124
• Inlet size ¾” BSP ¾” BSP ¾” BSP
• Flow rate - natural (m³/hr) 2.48 m3/hr 1.96 kg/h 1.93 kg/h
• Inlet pressure (mbar) 20 37 29
• Operating pressure (mbar) 15 37 29
• Burner rating * (kW) 8.4 x 3 9 x 3 9 x 3
• Burner rating * (btu/hr) 28,660 x 3 30,708 x 3 30,708 x 3
• Cooking area (w x d - mm) 890 x 750
• Number of branders 9
• Number of radiants 6
• Number of burners 3
• Weight (kg) 164
• Packed weight (kg) 181
• Packed dimensions (w x d x h - mm) 1000 x 1000 x 780

Accessories:
- Fixed stand (ST90)
- Griddle plate
- Front hob rail
- Kick strip (for stand)
- Rear blanking plate (for stand)
- Side hob extension
- Factory fitted, adjustable castors



PARTS ONLY WARRANTY IF GOING INTO MOBILE CATERING TRAILER.

New

Dimensions:
W900 X H900 X D350mm

• Engineer required for installation
• Requires hard-wiring - Flex may need to be purchased separate

Power Requirements:
Total Gas Rating:
Natural - 25.2kW

Propane - 27kW

Special Requirements:
3/4" BSP Gashose is required.
Please refer to manufacturers specification

Customers also bought

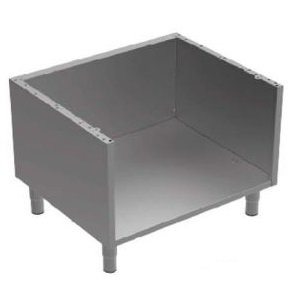

Falcon F900 ST90 Stand Unit
