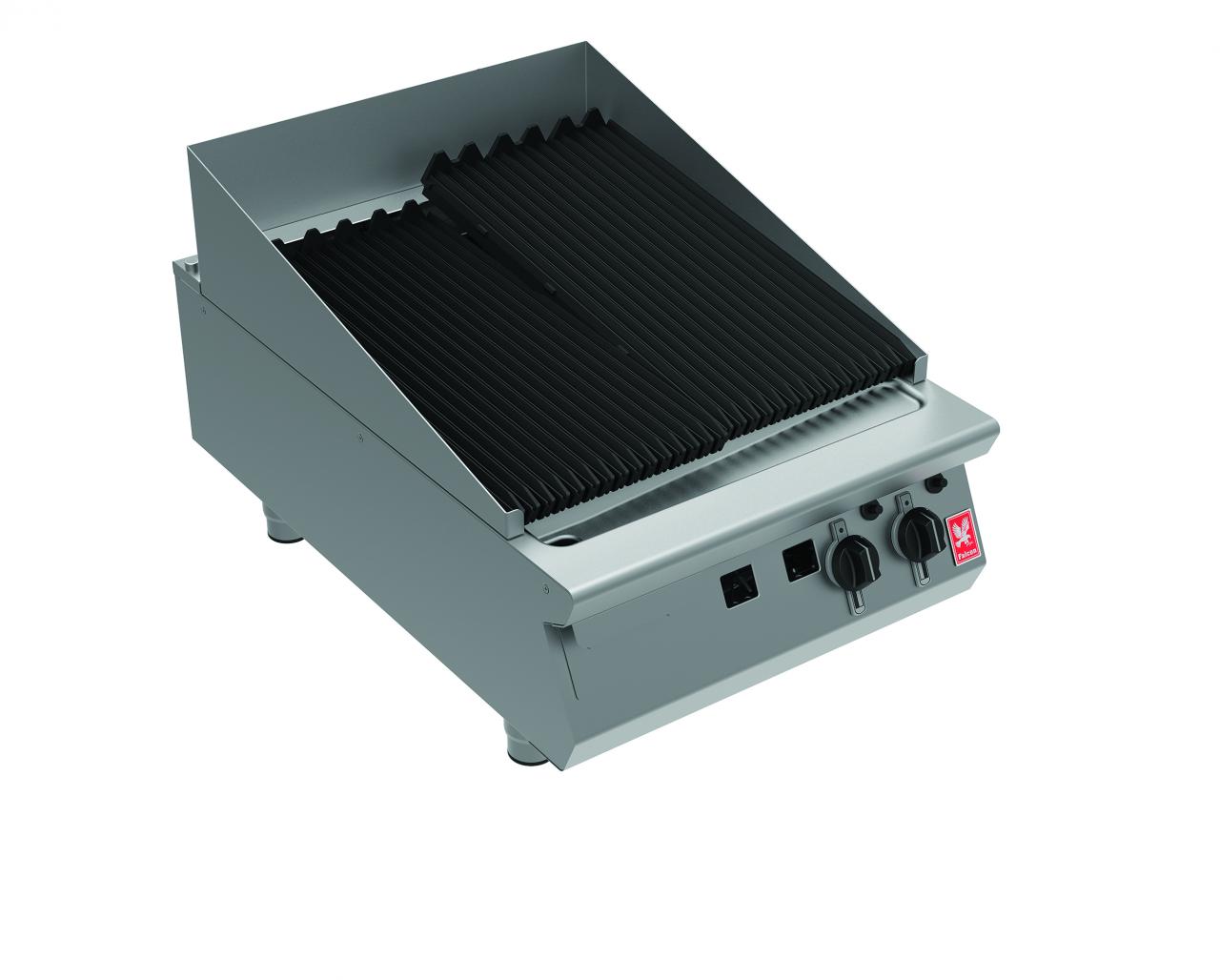

Falcon F900 G9460 Gas Radiant Chargrill

The Falcon G9460 gas chargrill has 6 Heavy Duty, double sided cast iron brander bars, 3 cast iron radiants and 2 cast iron burners. The radiants deliver controllable, constant heat across the extended cooking area and the variable control to help reduce energy consumption. The advanced design provides optimum heat transfer and distribution to ensure even cooking right across the entire grilling surface. This enables you produce delicious perfectly branded food. The G9460 features a pressed grease collection tray at the front of the unit, while also containing a removable fat jug and full width debris collection tray. All components can be removed for ease of cleaning and maintenance.
The hob is constructed from 2mm grade 304 stainless steel.
This unit is supplied on adjustable feet, with fixed or mobile stand options available.

Features:
• 2 X 8.4kW cast iron burner with protective radiants.
• Extended cooking area.
• Pressed grease collection tray at hob front.
• Removable stainless steel surround.
• Large capacity grease collection container.
• Cast iron burners with variable control/turndown position.
• Full width debris collection tray.
• 2mm Thick 304 grade stainless steel hob.
• Laser cut hob allows edge to edge joining of units.
• Stainless steel external panels with Scotch Brite finish.
• For use with natural, propane and butane gas. (Conversion kit supplied with each unit)
• Dynamic Link System Compatible.

Specifications:
• Total rating (kW - Nett) 16.8 18 18
• Total rating (btu/hr - gross) 57,322 61,416 61,416
• Inlet size ¾” BSP ¾” BSP ¾” BSP
• Flow rate - natural (m³/hr) 1.65 m3/hr 1.31 kg/h 1.29 kg/h
• Inlet pressure (mbar) 20 37 29
• Operating pressure (mbar) 15 37 29
• Burner rating * (kW) 8.4 x 2 9 x 2 9 x 2
• Burner rating * (btu/hr) 28,660 x 2 30,708 x 2 30,708 x 2
• Cooking area (w x d - mm) 590 x 750
• Number of branders 6
• Number of radiants 4
• Number of burners 2
• Weight (kg) 115
• Packed weight (kg) 128
• Packed dimensions (w x d x h - mm) 700 x 1000 x 780

Optional Accessories:
- Fixed stand (ST60)
- Griddle plate
- Front hob rail
- Kick strip (for stand)
- Rear blanking plate (for stand)
- Side hob extension
- Factory fitted, adjustable castors



PARTS ONLY WARRANTY IF GOING INTO MOBILE CATERING TRAILER.

New

Dimensions:
650 (w) x 970 (d) x 880 (h)

• Engineer required for installation
• Product downloads available

Power Requirements:
Burner rating (kW - Nett)
Natural: 8.4
Propane: 9 x 9
Butane: 9 x 2

Burner rating
Natural: 28,660 x2
Propane: 30,708 x2
Butane: 30,708 x2

Special Requirements:

Please refer to manufacturers specification
