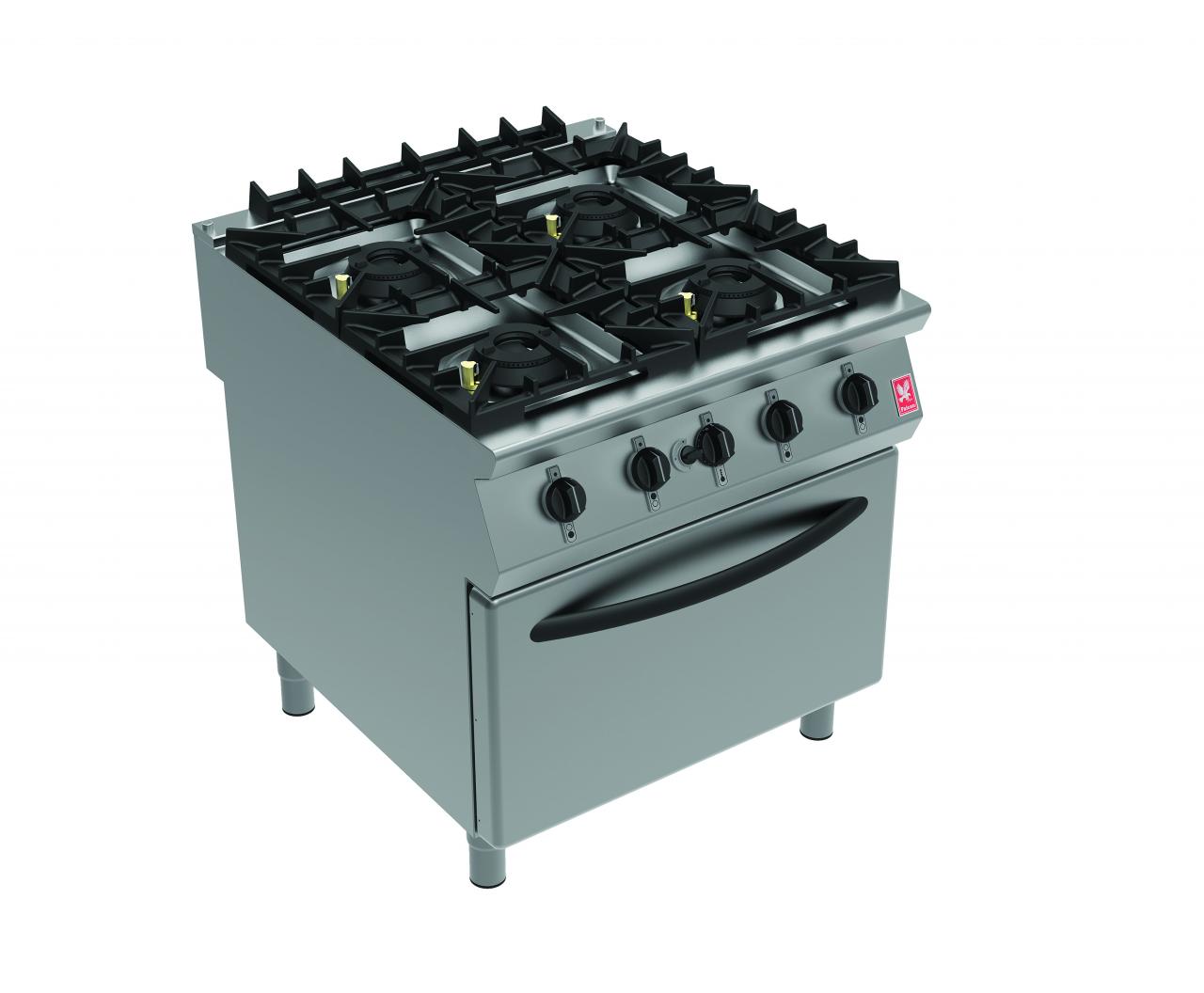

Falcon F900 G9184 Four Burner Gas Oven Range

The G9184 four burner oven range is ideal for any kitchen. Four powerful 9.5kW burners, individual cast iron pan supports and manufactured from 304 culinary grade stainless steel ensures it can withstand the harshest of kitchen environments. A one-piece pressed hob with deep drawn wells that contain spillage, wide radiused corners to prevent build up of grime and grease.

The large 2/1 gastronorm compatible oven features five shelf positions, with two shelves supplied as standard, piezo ignition for ease of lighting. Also a metal to metal door seal, to ensure heat is retained exactly where it is needed in the oven chamber.

The hob is constructed from 2mm 304 grade stainless steel and laser cut with right angles to allow the joining of units with no gaps via the patented Dynamic links system.



Features:
• 4 X High performance 9.5kW burners.
• Individually protected burner pilots.
• Individual cast iron pan supports.
• Sealed burner wells to contain any spillage.
• Supplied upon stainless steel adjustable feet.
• Fully-pressed oven door seal - better heat retention.
• 2/1 GN Oven with side-mounted runners.
• 5 Shelf positions, 2 shelves supplied.
• 80 - 280°C Oven Temperature range.
• 2mm Thick 304 grade stainless steel hob.
• laser cut hob allows edge to edge joining of units.
• Stainless steel external panels with Scotch Brite finish.
• For use with Natural, Propane and Butane gas, a conversion kit supplied with each unit.
• Dynamic Link System Compatible.

Specifications:
• Total rating (kW - Nett) 45.5
• Total rating (btu/hr - gross) 170,819
• Inlet size ¾” BSP
• Flow rate - natural (m³/hr) 4.47 m3/hr
• Inlet pressure (mbar) 20
• Operating pressure (mbar) 20
• Hob burner rating * (kW) 9.5 x 4
• Hob burner rating * (btu/hr) 35,666 x 4
• Oven burner rating * (kW) 7.5
• Oven burner rating * (btu/hr) 28,157
• Oven dimensions (w x d x h - mm) 565 x 730 x 300
• Oven shelf (w x d - mm) 535 x 700
• Gastronorm compatibility 2/1
• Weight (kg) 125
• Packed weight (kg) 142
• Packed dimensions (w x d x h - mm) 1000 x 1000 x 1110


PARTS ONLY WARRANTY IF GOING INTO MOBILE CATERING TRAILER.

New

Dimensions:
W800 X D900 X H900mm

Packed Dimensions:
W850 X D970 X H1105mm

• Engineer required for installation
• Product downloads available

Power Requirements:
Total Rating:
Natural - 45.5kW
LPG - 35kW

Total Rating:
Natural - 170,819 btu/hr
LPG - 131,399 btu/hr

Special Requirements:
3/4" BSP Gas hose required.
Please refer to manufacturers specification

Downloads available for this product

• G9184 - User Manual
• G9184 - Spec Sheet
• G9184 - Spares Manual

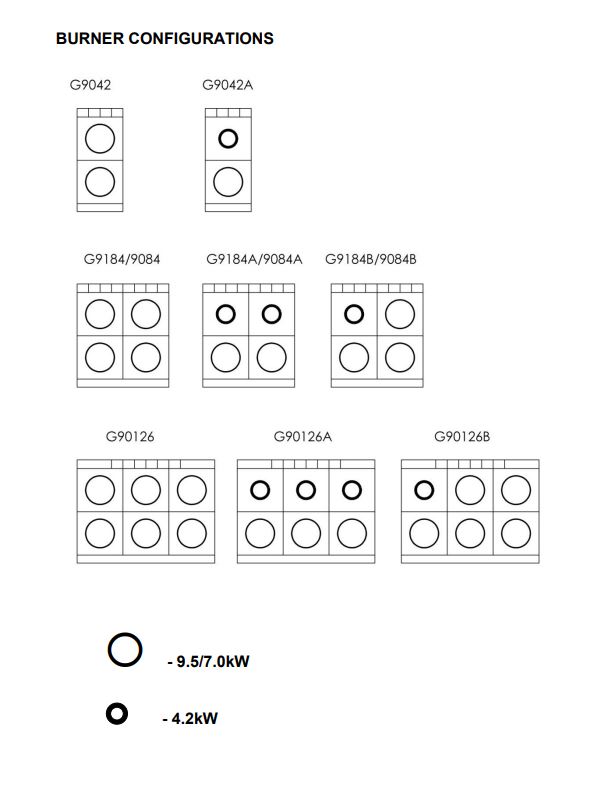

• G9184/A/B - Burner Configurations
