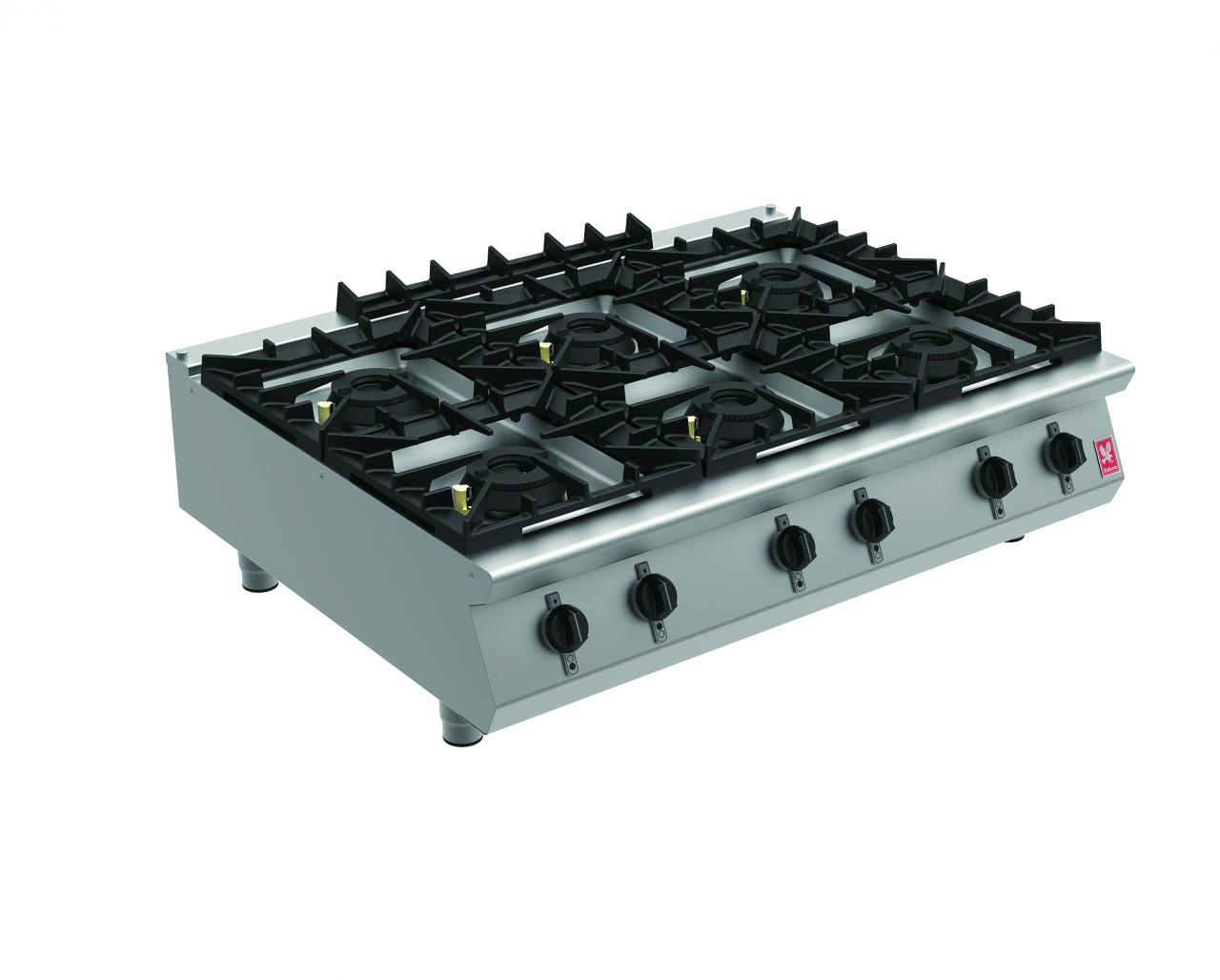

Falcon F900 G90126 Six Burner Gas Boiling Top

The G90126 features 6 HIGH powered 9.5kW burners with removable cap for ease of cleaning. The deep drawn pressed wells in the one piece hob contain spillages and the wide radiused corners prevent grease and grime build up and are easy to clean and keep clean. The burners feature double rings to direct the flame onto the pan base, making them ideal for any pan size and increasing efficiency while minimising heat up time. Individual cast iron pan supports and 2mm thick culinary grade stainless steel construction provide robustness and longevity. The laser cut hob enables edge to edge joining of equipment, providing the benefits of a cooking suite with the advantage of seperate units.

The hob is constructed from 2mm 304 grade stainless steel and laser cut with right angles edges to allow the joining of units with no gaps via the patented Dynamic Link system. (DLS).

The unit can be mounted on a fixed or mobile stand.
Further optional extras include:
A front hob rail.



Features:
• 6 X High performance 9.5kW burners.
• Individually protected burner pilots.
• Burners fitted with flame failure device as standard.
• Individual cast iron pan supports.
• Pressed, sealed burner well to contain spillage.
• Supplied upon adjustable stainless steel feet.
• 2mm Thick 304 grade stainless steel hob.
• Laser cut hob allows edge to edge joining of units.
• For use with natural, propane and butane gas. Conversion kit supplied with each unit.

Specifications:
Total rating (kW - Nett) Natural gas: 57 / Propane gas: 42 / Butane gas: 42
Total rating (btu/hr - gross) Natural gas: 213,993 / Propane gas: 157,679 / Butane gas: 157,679
Inlet size: Natural gas: ¾” / Propane gas: BSP ¾” / Butane gas: BSP ¾” BSP
Flow rate - natural (m³/hr) Natural gas: 5.60 m3/hr / Propane gas: 3.05 kg/h / Butane gas: 3.00 kg/h
Inlet pressure (mbar) Natural gas: 20 / Propane gas: 37 / Butane gas: 29
Operating pressure (mbar) Natural gas: 20 / Propane gas: 37 / Butane gas: 29

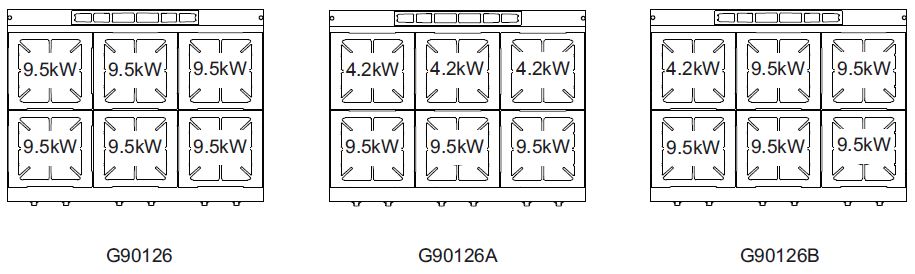

Hob burner rating * (kW) Natural gas: 9.5 x 6 / Propane gas: 7 x 6 / Butane gas: 7 x 6
Hob burner rating * (btu/hr) Natural gas: 35,666 x 6 / Propane gas: 26,280 x 6 / Butane gas: 26,280 x 6
Weight (kg) 98
Packed weight (kg) 120
Packed dimensions (w x d x h - mm) 1290 x 1000 x 780


PARTS ONLY WARRANTY IF GOING INTO MOBILE CATERING TRAILER.

New

Dimensions:
W1200 X D900 X H350mm

• Engineer required for installation
• Product downloads available

Power Requirements:
Power Output (btu/hr)
Butane Gas - Total:157,679
Natural Gas - Total:213,993
Propane Gas - Total:157,679

Power Output (kW)
Butane Gas - Total:42
Natural Gas - Total:57
Propane Gas - Total:42

Special Requirements:

Please refer to manufacturers specification
