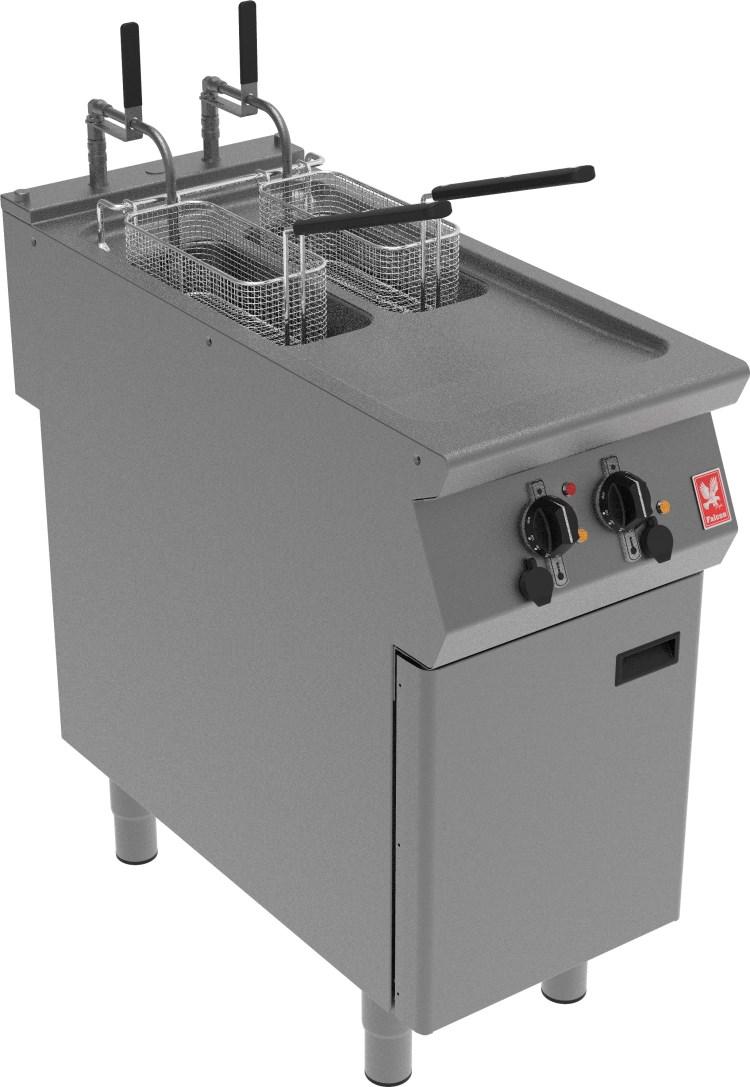

Falcon F900 E9342F2 Twin Basket Electric Fryer with Twin Filtration

The E9342F2 builds on the already finely tuned E9342F model by doubling the performance of the filtration system, allowing for fast and more cost effective use of oil, thus extending life span and reducing operating costs. Each pan takes 7.5 Litres of oil during use, which is heated and controlled via thermostatic controllers, within the operating range of 130-190°C, and can be individually emptied if necessary. The unit is supplied with fry plates, drain bucket, filter mesh and baskets and lid as standard.

The hob is constructed from 2mm 304 grade stainless steel and laser cut with right angled edges to allow the joining of units with virtually no gaps via the Dynamic Link System (DLS)* And the whole unit is IPX5 Rated.

Features:
• "Eco" setting, to reduce power consumption during pre-heating, can be used as fat melt mode.
• Integrated filtration to each pan, extending life span of oil.
• Individually drained pans.
• 7.5 Litre capacity (per pan)
• Elements rotate within pan for easy cleaning.
• Manual controls for ease of use.
• Rapid recovery and response times.
• Individual bucket, situated directly below each 1" drain valve.
• Stainless steel exterior with Scotch Brite finish.
• Dynamic Link System Compatibility.

Specifications:
• Electrical rating (kW) 15
• Electrical supply voltage 400V 3N~ 50/60 Hz
• Required electrical supply (A) 32
• Electrical current split (A) L1: 21.74, L2: 21.74, L3: 21.74
• Element rating (kW) 7.5
• Oil capacity (litres) 7.5
• Chip Output (kg/hr) 23
• Weight (kg) 72
• Packed weight (kg) 82
• Packed dimensions (w x d x h - mm) 490 x 1000 x 1015

New

Dimensions:
W400 X D900 X H900mm


Weight: 88kg

• Engineer required for installation
• Product downloads available
• Requires hard-wiring - Flex may need to be purchased separate
• Standard 3 Phase Supply

Power Requirements:
Total Electrical rating: 15kW

Supply Voltage: 400V 3N~

Three Phase Loading: L1: 21.74A, L2: 21.74A, L3: 21.74A

Special Requirements:
Requires hard-wiring by a qualified electrician.
Please refer to manufacturers specification

Customers also bought

Cater-Fabs Stainless Steel Splash-Guard

£68.99

Downloads available for this product

• E9342F2 Spec Sheet
• E9342F2 Spares Information
• E9342F2 Instruction Manual
