Falcon Dominator Plus E3917i Induction Solid Top Range

Bolstering The Falcon Dominator Plus range of Induction cooking equipment is the heavy duty E3917i Solid Top Induction range.
With Induction technology becoming ever more popular due to not only it's incredible energy efficiency but also safety and ease of use, the E3917i hits the mark for chefs and owners looking to add a solid top oven to their kitchen. Traditional gas solid tops give the end user unrivalled flexibility due to the concentric gas burners that radiate heat outwards.. Hotter in the middle, cooler at the edges. Simple stuff.

Where the E3917i's induction plates improve on this design is with 5 individually controlled induction plates. Whether you have a large stock pot that happily sits atop 1 zone, or smaller pans and more delicate dishes that require that extra fine tuning, simply straddle the pans over separate zones. Topped with 6mm thick toughened ceramic glass, slide and move your dishes effortlessly - just the same as a gas powered equivalent.

Features:
• Minimal heat emissions - a much friendlier and more comfortable environment to work in.
• LED display in the hob panel - Simple displays for each zone.
• Inbuilt pan detection.
• Induction technology means heat is directed straight into the pot - Minimal wasted energy.
• Instant heat and absolute control of both the temperature and speed.
• A breeze to clean thanks to the solid 6mm thick toughened glass surface.
• Safer than gas alternatives - No hot pan handles during service.
• Multi-pot cooking - Use any pan size required on either 1 zone or straddled across 2.
• 1/1GN Fan assisted oven (5 shelf positions with 2 shelves supplied).
• Oven temperature range of 100 - 250°C.
• Twin glass panelled oven doors.

Specifications:
• Electrical rating (kW) 27.5
• Electrical supply voltage 400V 3N~
• Required electrical supply (A) 63A
• Electrical current split (A) L1: 39.9 L2: 39.9 L3: 39.9
• Element rating - hob (kW) 1 x 7.5, 1 x 5, 3 x 3
• Element rating - oven (kW) 6
• Heat zone sizes (mm) Centre - 320 x 320
Sides - 160 x 320
Front & back - 670 x 100
• Minimum pan size (mm) 120
• Oven dimensions (w x d x h - mm) 530 x 535 x 380
• Oven shelf (w x d - mm) 530 x 535
• compatibility 1/1
• Weight (kg) 150
• Packed weight (kg) 165
• Packed dimensions (w x d x h - mm) 1000 x 1000 x 1100

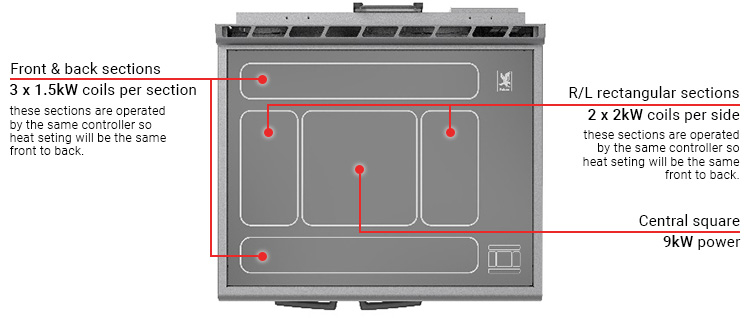

Induction Zone Layout


Central zone: W320 x D320mm
Left/Right zones: W160 x D320mm
Front/Rear zones: W670 x D100mm

New

Dimensions:
External Dimensions: W900 x D900 x H900mm
(Height 950mm including flue)

Oven dimensions: W530 x D535 x H380mm

Central zone: W320 x D320mm
Left/Right zones: W160 x D320mm
Front/Rear zones: W670 x D100mm

Weight: 150kg

Power Requirements:
Electrical rating: 27.5kW
Supply voltage: 400V 3N~
Required electrical supply: 63A

Phase loading:
L1: 39.9A
L2: 39.9A
L3: 39.9A

Special Requirements:
This unit requires hard-wiring by a trained engineer.
Please refer to manufacturers specification
