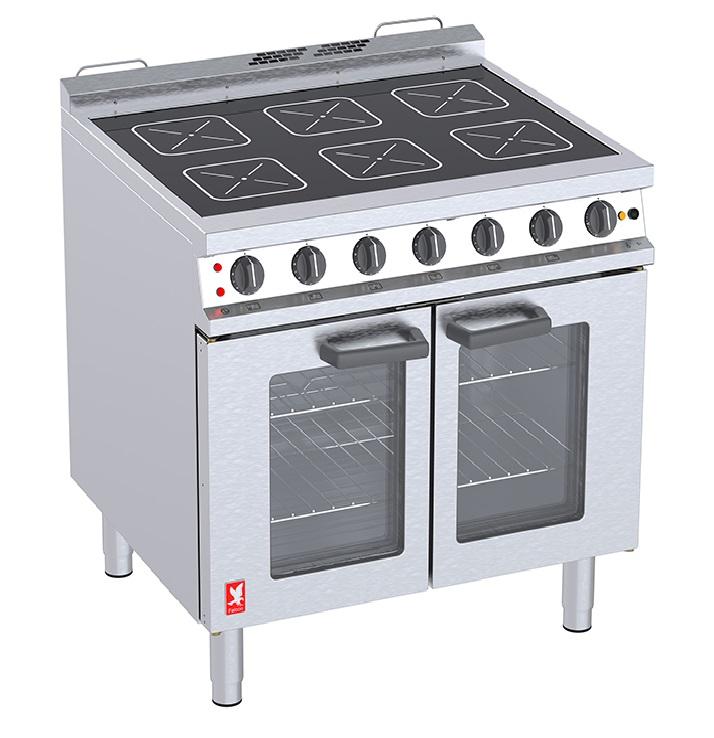

Falcon E3196 Ceramic Glass Top Electric Oven

The Falcon E3196 Ceramic Glass Top Oven is a really simple and cost effective way for operators to move from gas to electric, helping to lower your carbon footprint.

Coming with six 230mm square zones, with round 2.3kW elements underneath. The elements heat up super fast, reducing the heat-up time. The glass features a warning light, which illuminates to warn users that the surface is hot. The light stays on until the glass is cool enough to touch.

This electric oven has five shelf positions, with two shelves supplied as standard. A temperature range of 100-250°C. The oven chamber is vitreous enamelled and has a full width removable drip tray, making it simple to clean and keep clean. Glass panels in the oven door allow the user to monitor the cooking progress without losing valuable heat. The appliance is supplied on adjustable feet, with castors available as an optional extra.

Features:
•Ceramic top glass easy to clean.
•Heat zones can be used for multipot cooking or multiple zones straddled by larger pots.
•Warning light on the glass to alert users that the surface is hot.
•Glass panelled doors & internal light makes it easy to monitor progress without losing heat.
•Glass hob is robust enough to cope with harsh pan work.
•Can be supplied on adjustable legs or castors.

Specifications:
• Temperature range: 100°C-250°C
• Packed weight: 130kg
• Gastronorm compatibility: 2/1
• Weight: 115kg
• Electrical current split (A) L1:30; L2;30; L3;30
• Packed dimensions (w x d x h - mm) 1000 x 1000 x 1000
• Oven dimensions (w x d x h- mm) 700 x 535 x 430

2 YEAR PARTS & LABOUR WARRANTY

New

Dimensions:
• Oven dimensions: W700 x D535 x H430mm

• Packed dimensions (w x d x h - mm) 1000 x 1000 x 1000

• Oven shelf: W700 x D535mm

Power Requirements:
Total Power: 20.2kW, 400V/3ph, 32 amp min.
Oven Power: 6.4kW.
Hob power: 6 zones = 13.8kW

Special Requirements:
Installation notes:

Adequate ventilation must be provided to supply sufficient fresh air and to allow easy removal of any such products that may present a risk to health.

Install the unit on a level, fireproof surface in a well-lit position. If the floor is made of a combustible material, local fire requirements must be checked to ensure compliance.

A clearance of 150mm should be observed between appliance and any combustible wall.
Please refer to manufacturers specification

Downloads available for this product

• Falcon E3196 Manual
• Falcon E3196 Spares
• Falcon E3196 Spec sheet
