BRAND: Electrolux
MPN: 535016

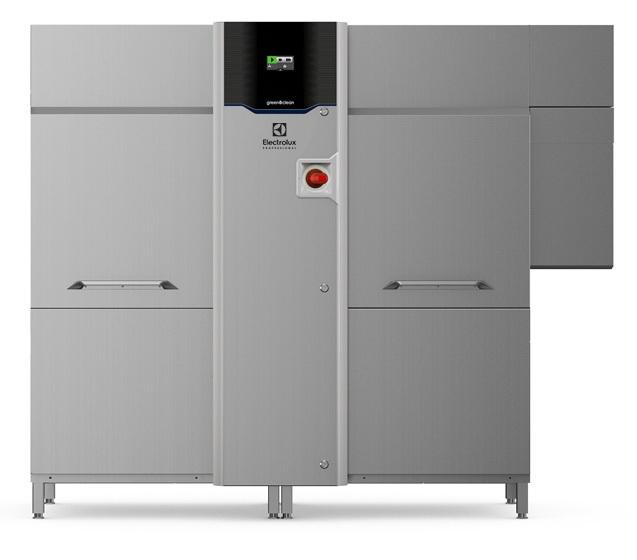

Electrolux Professional 535016 Green & Clean multi–rinse Rack Type Dishwasher - Capable of up to 150 racks per hour, with wash-safe control, clear blue filtration, electronic touch screen, a zero-lime cycle and an integrated ESD (energy saving device) helping to heat up incoming water and saving you money.
The 535016 rack type dishwasher is a great solution for food establishment looking for higher turnover of dish's than a traditional hood type, with almost double the rack capability and reduced water consumption.
Features:• Mulit rinse technology ensures maximum rinse water coverage for perfect hygiene results.
• Built-in Energy saving device (ESD) utilises the steam generated by this dishwasher heating up incoming water to 55⁰C, saving energy costs.
• Wash-Safe control system ensures that the rinse water reaches 85⁰C, with a built-in rinse booster pump ensuring sanitisation.
• Clear blue filtration system removes soil from the wash water providing a better wash result and a reduction in detergent use, reducing your bills.
• Electronic touch control panel with an intuitive, user-friendly display making the machine easy to use and monitor.
• Three conveyor speeds which can be selected through the touch panel.
• Zero-Lime is a separate, fully automatic cycle, using white wine vinegar to ensure total scale removal from the boiler, the hydraulic circuit, the washing chamber and the rinsing chamber.
• Automatic drain, clean and sanitize cycles featured as standard.
• Large, counterbalanced inspection door for unrestricted all-round access.
• Equipped with a USB port making it easy to read machine identification, counters and consumption, components, devices and alarm logs.
• Built in drain pump allows the machine to refresh the wash water without any interruption to the washing process.
• General IP25 protection with all electronic components in an isolated box rated at IP65 protection.
• Modular design allowing for disassembly for delivery, complete customisation and future upgradability.
• All main components are made from heavy-duty anti-corrosive AISI 304 stainless steel.
• DIN 10510
• Feeding direction is left to right.
• Supplied with 1 x Splash hood kit & 1 delime kit.
Specifications:• Water inlet: ¾' Inch.
• Drain size: 50mm.
• Inlet water supply pressure: 1.5-6 bar.
• Inlet water supply temperature (wash and rinse): 5°C - 65°C.
The higher the temperature, the faster the warm-up, recommended temperature: 50°C.
• Wash tank size: 70 litres.
• Rinse water consumption at max. speed: 60 l/h
• Racks per hour: 150 / 114 / 96 (NSF complaint speed).
• Water consumption at max speed: 1.2 l/rack
• Wash Temperature: 55°C - 65°C.
• Final rinse temperature: 85 °C.
2 Year parts and labour warranty.
For those in Hard Water areas,
we strongly recommend you also protect against limescale with a suitable a filter.
