BRAND: Electrolux
MPN: 535002

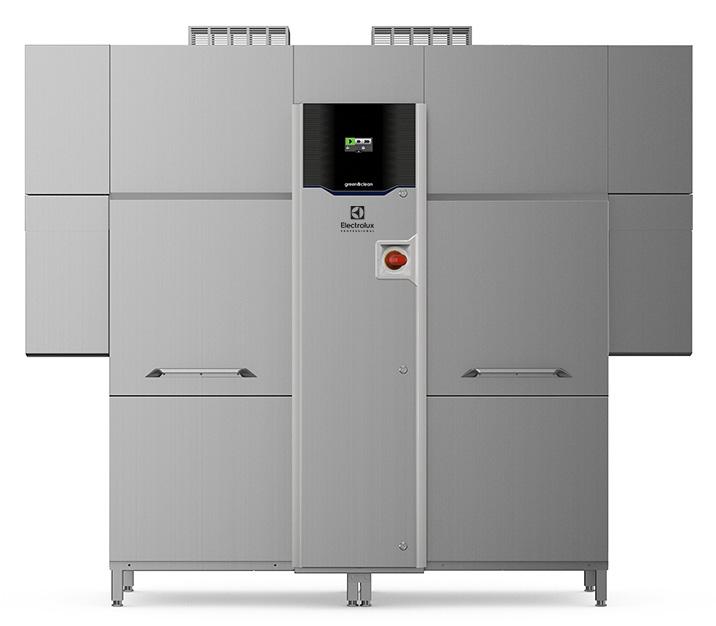

Electrolux Professional Green & Clean multi rinse rack type dishwasher - Capable of up to 150 racks per hour, with wash-safe control, clear blue filtration, electronic touch screen, a zero-lime cycle and a ventless heat pump, which is like an ESD, but better, not only can this use exhaust steam to heat incoming water it can also reduce the humidity, volume and temperature of the exhaust steam, making for a high quality work environment plus saving money on your electric bills.
This rack type dishwasher is a great solution for food establishment looking for higher turnover of dish's than a traditional hood type, with almost double the rack capability and reduced water consumption.
Features:• Multi rinse technology ensures maximum rinse water coverage for perfect hygiene results whilst only using 0.4 litres of water per rack.
• Wash-Safe control system ensures that the rinse water reaches 85⁰C, with a built-in rinse booster pump ensuring sanitisation.
• Clear blue filtration system removes soil from the wash water providing a better wash result and a reduction in detergent use, reducing your bills.
• Ventless heat pump - Captures the heat from the exhaust steam to aid in heating up incoming water whilst also reducing the overall volume, temperature and humidity of the final exhaust steam.
• Electronic touch control panel with an intuitive, user-friendly display making the machine easy to use and monitor.
• Three conveyor speeds which can be selected through the touch panel.
• Zero-Lime is a separate, fully automatic cycle, using white wine vinegar to ensure total scale removal from the boiler, the hydraulic circuit, the washing chamber and the rinsing chamber.
• Automatic drain, clean and sanitize cycles featured as standard.
• Large, counterbalanced inspection door for unrestricted all-round access.
• Equipped with a USB port making it easy to read machine identification, counters and consumption, components, devices and alarm logs.
• Built in drain pump allows the machine to refresh the wash water without any interruption to the washing process.
• General IP25 protection with all electronic components in an isolated box rated at IP65 protection.
• DIN 10510 compliant.
• Modular design allowing for disassembly for delivery, complete customisation and future upgradability.
• All main components are made from heavy-duty anti-corrosive AISI 304 stainless steel.
• Feeding direction is right to left as standard - can be converted on site to left to right.
• Supplied with 1 x delime kit & 1 water meter kit.
Specifications:• Water inlet: ¾' Inch.
• Drain size: 50mm.
• Inlet water supply pressure: 1.5-6 bar.
• Inlet water supply temperature (wash and rinse): 5°C - 65°C.
• Wash tank size: 70 litres.
• Rinse water consumption: 180 l/h.
• Racks per hour: 150 / 114 / 96 (NSF complaint speed).
• Water consumption at max speed: 1.2 l/rack
• Wash Temperature: 55°C - 65°C.
• Final rinse temperature: 85 °C.
2 Year parts and labour warranty.
For those in Hard Water areas,
we strongly recommend you also protect against limescale with a suitable a filter.
