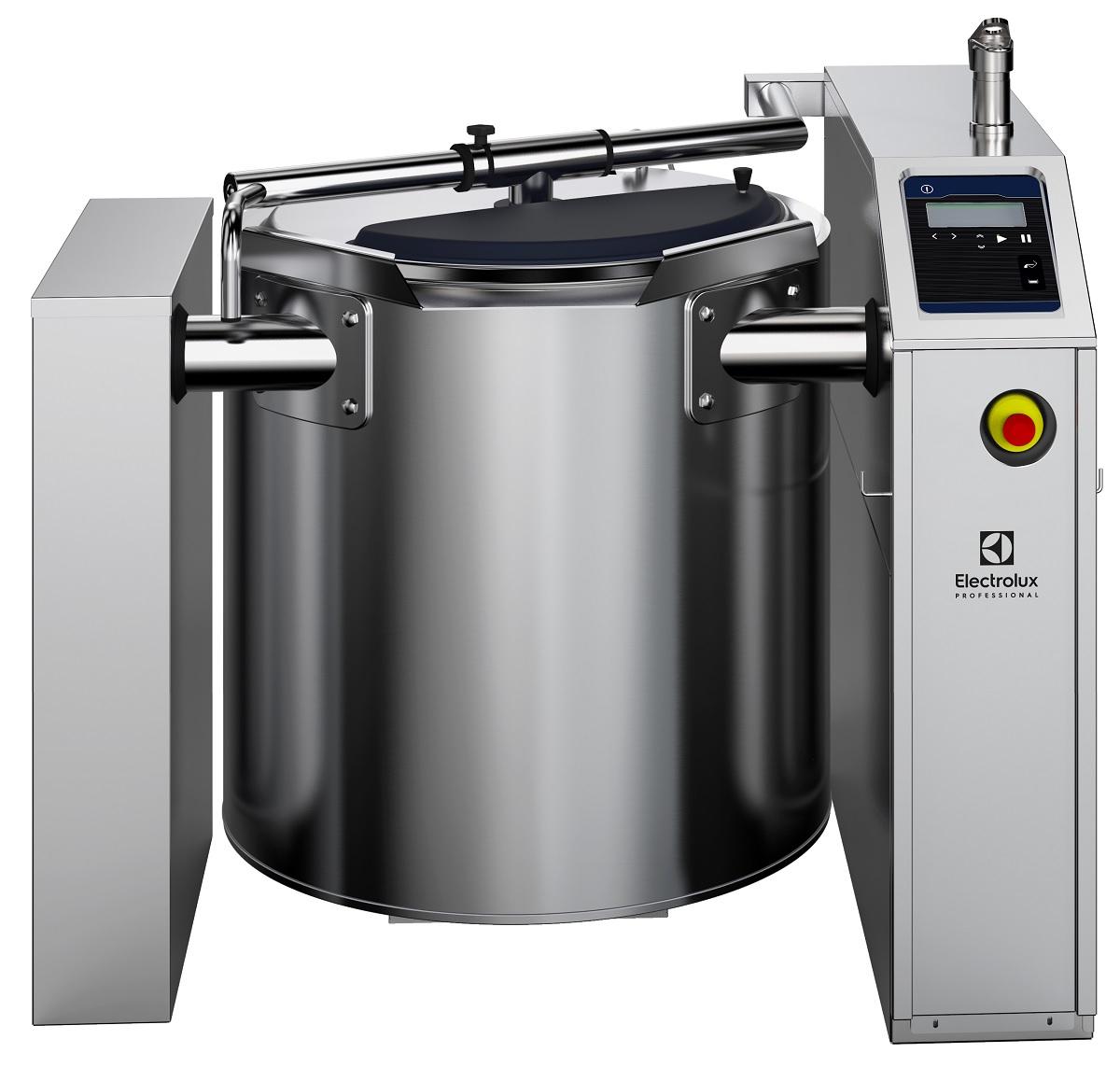

Electrolux Variomix 150 Litre Electric Boiling Pan with Stirrer - 232225

Electrolux's range of high productivity boiling pans are designed to uniformly heat food in the base and side walls of the kettle by an indirect heating system that uses an indirect heating system.

Electrolux Variomix tilting kettle uses integrally generated saturated steam at a temperature of 120°C in the jacket with an automatic deaeration system. the bottom agitator mixes at speeds from 25 to 100RPM, also the unit has the capability to perform a whipping cycle at 200RPM.

Features:
• Indirect Heating System - Food is uniformly heated through base and side-walls using integrally generated steam.
• Highly efficient heating technology and well insulation, helps keep the heat inside the well.
• Electronic controls with a large easy-to-use display which can store up to 50 programs and allowing for complete control over cook time, temperature, water filling and mixing speed.
• Curved Pan Base - Allows unit to prepare small quantities of food as well as large quantities.
• Bottom Agitator - Mixes at speeds of 25-100RPM with either continuous rotating or 2 rotating directions.
• 150 Litre Capacity.
• Safety Thermostat - Protects against low water level.
• Safety Valve - Prevents over-pressure of steam in the jacket.
• High Quality Thermal Insulation - Saves energy and keeps operating ambient temperature low.
• High Thermal Input & Fast Heat-Up.
• Isolated Upper Well Rim - Avoids risk of harm to user.
• Programmable Electronic Controls - Store up to 50 programs.
• Motorised Tilting - Vessel can be tilted beyond 90° to completely empty the food.
• Ergonomic & User Friendly - High-tilting position and pouring lip design.
• Made from high quality AISI 304 Stainless Steel making it easy to clean & high standard of hygiene.

Please Note

To install this unit you need the following parts.

• 928150 - Left leg/ column (this does not come with the machine, as you can suite up more than one unit and therefore would not need this leg for each unit).
• 928029 - Fixture - 1 needed per pan.
• 928034 - Floor fastening kit for left column (to bolt the unit the unit to the floor).
• 928035 - Floor fastening kit for right column (to bolt the unit the unit to the floor).
Specifications:
• 600mm Tilting height.
• Vessel dimensions: Dia 695 x D 500 mm.
• Working temperature: 30°C - 121°C.
• Useful capacity: 150 Litre.

2 Year on-site Parts & Labour warranty.

New

Dimensions:
W 1300 x D 1070 x H 1050mm
Weight: 315Kg

Power Requirements:
31.5kW
400V, 50Hz Three Phase - requires hardwiring.

Total loading: 31500W

Special Requirements:
requires hardwiring by qualified electrician.
Please refer to manufacturers specification

Downloads available for this product

• Variomix 150 Litre Spec Sheet
