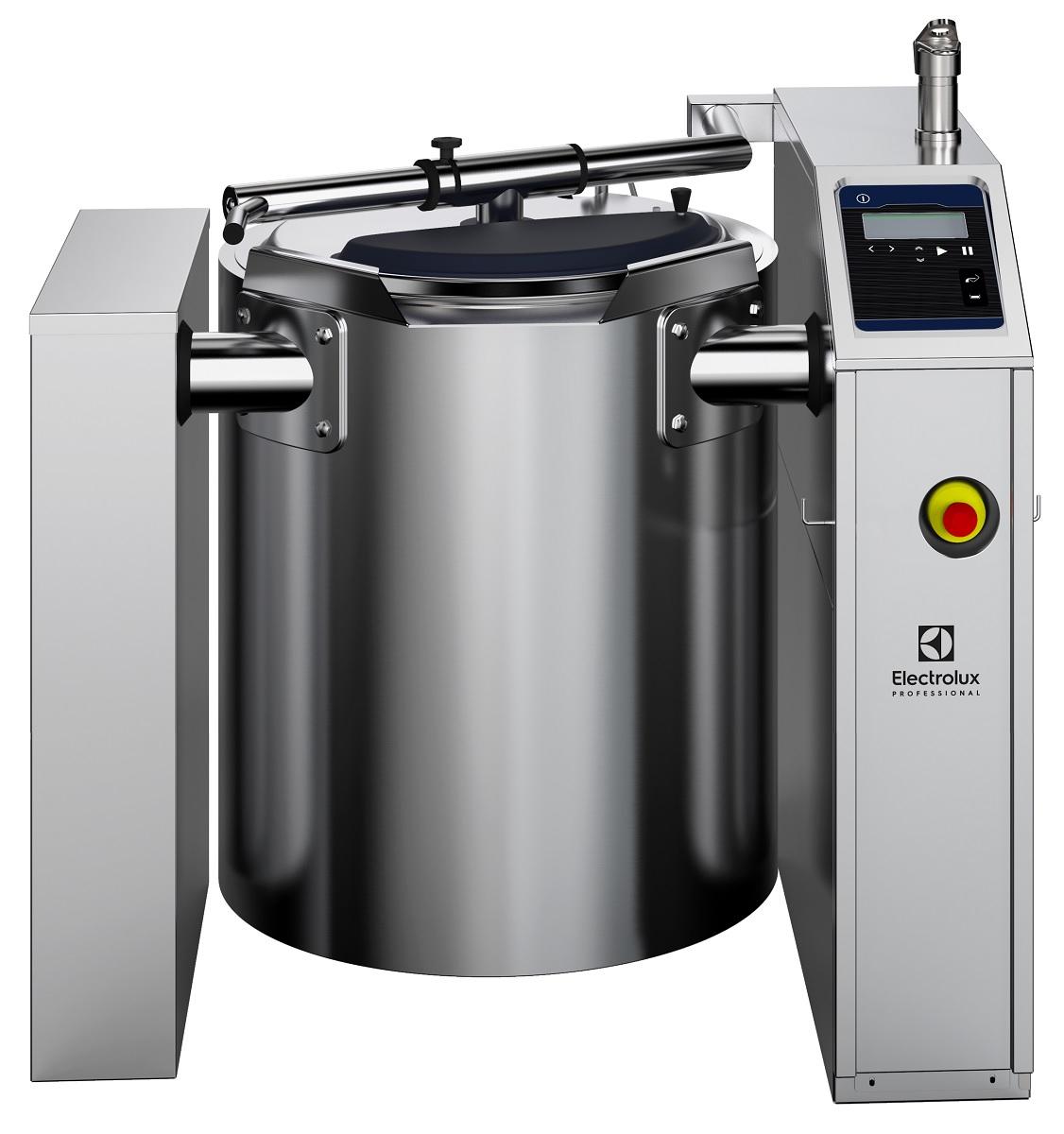

Electrolux Variomix 100 Litre Electric Boiling Pan with Stirrer - 232224

Electrolux's range of high productivity boiling pans are designed to uniformly heat food in the base and side walls of the kettle by an indirect heating system that uses an indirect heating system.

Electrolux Variomix tilting kettle uses integrally generated saturated steam at a temperature of 120°C in the jacket with an automatic deaeration system. the bottom agitator mixes at speeds from 25 to 100RPM, also the unit has the capability to perform a whipping cycle at 200RPM.

Features:
• Indirect Heating System - Food is uniformly heated through base and side-walls using integrally generated steam.
• Highly efficient heating technology and well insulation, helps keep the heat inside the well.
• Electronic controls with a large easy-to-use display which can store up to 50 programs and allowing for complete control over cook time, temperature, water filling and mixing speed.
• Curved Pan Base - Allows unit to prepare small quantities of food as well as large quantities.
• Bottom Agitator - Mixes at speeds of 25-100RPM with either continuous rotating or 2 rotating directions.
• 100 Litre Capacity.
• Safety Thermostat - Protects against low water level.
• Safety Valve - Prevents over-pressure of steam in the jacket.
• High Quality Thermal Insulation - Saves energy and keeps operating ambient temperature low.
• High Thermal Input & Fast Heat-Up.
• Isolated Upper Well Rim - Avoids risk of harm to user.
• Programmable Electronic Controls - Store up to 50 programs.
• Motorised Tilting - Vessel can be tilted beyond 90° to completely empty the food.
• Ergonomic & User Friendly - High-tilting position and pouring lip design.
• Made from high quality AISI 304 Stainless Steel making it easy to clean & high standard of hygiene.

Please Note

To install this unit you need the following parts.

• 928150 - Left leg/ column (this does not come with the machine, as you can suite up more than one unit and therefore would not need this leg for each unit).
• 928029 - Fixture - 1 needed per pan.
• 928034 - Floor fastening kit for left column (to bolt the unit the unit to the floor).
• 928035 - Floor fastening kit for right column (to bolt the unit the unit to the floor).
Specifications:
• 600mm Tilting height.
• Vessel dimensions: Dia 580 x D 464mm.
• Working temperature: 30°C - 121°C.
• Useful capacity: 100 Litre.

2 Year on-site Parts & Labour warranty.

New

Dimensions:
W1160 x D925 x H1050mm
Weight: 282kg

Power Requirements:
24kW
400V, 50Hz, Three phase - Requires Hardwiring

Special Requirements:

Please refer to manufacturers specification

Downloads available for this product

• Electroluux Variomix 232224 Spec Sheet
